RD - G300 series
RD - G300 series

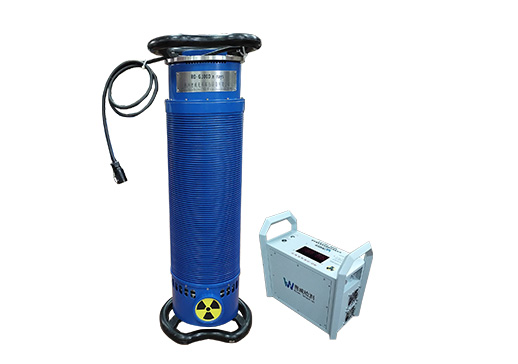

High frequency industrial X-ray machine
RD - G300 series

RD-G300D、 RD - G300H


Model

Input Power Capacity

KVA

Tube Voltage

KVP

X Ray Tube

X Ray Generator

Controller

Size

weight

Max penetration (mm)

Focal Size (mm)

Angle

RD-1805

4

80-180KV

0.9*0.9

40+5°

Dia116*510mm

8.9

32

4.8KG

RD-2305

5

100-230KV

0.9*0.9

40+5°

Dia280*600mm

12

32

5KG

RD-2805

5

150-280KV

2.0*2.0

40+5°

Dia280*600mm

26

45

9kg

RD-300LG

6

150-300KV

2.6*2.6

40+5°

Dia270*810

45

80

1.5KG

RD-3005

6

170-300KV


40+5°

Dia260*600

28kg

52

5kg

RD-3505

7

170-350KV


40+5°

Dia320*650

34kg

55

9kg

RD-3605

7

170-360KV

2.5

40+5°

Dia320*650

34kg

60

9kg

RD-G300

6

30-300KV

2.5*2.5

40+5°

Dia305*880

30

55

11

Technical Specification

Item

Technical Data

AC Power

AC 220V+/-10%, 50Hz

Output

Tube current

5mA

High voltage transfer input voltage fluctuation

+/- 1%



X Ray Generator

Cooling method

Force air cooling

Insulated method

SF6 gas insulation

Soft working pressure (20℃）

0.35~0.45Mpa

Working Condition

Temperature

-30-40℃

Relative Humidity

＜85%

Altitude

1000m

Max Penetration Condition

Steel

A3(mm)

Focal length

600m

Exposure

≤30mAmin

Film

Double-sided lead foil sensitization

Darkroom treatment

20+/-2℃， 5min

Optic density

D≥2.0

The controller

Size


Weight


Timing error

5min +/- 10%

Working Rate

Working & rest 2:1 working rate, the max exposure time 9.5min


The mature application of digital X-ray imaging (DR) technology requires the use of high frequency or DC high voltage ray sources, which can eliminate the frequency conversion (fluctuation) interference fringes in DR applications. The machine has applied for a number of patent technology.

This model adopts double - phase capacitor voltage, filament resonance circuit. The voltage module is controlled by PWM, the current module is controlled by PFM, and the overall control is controlled by three independent microcomputer chips. The main characteristics are stable DC high voltage, high efficiency of the ray machine, high power factor of the whole machine, and excellent performance for the application of on-site generator power supply. It is also one of the few portable ray flaw detectors that can pass the electromagnetic compatibility test.
